SIDE DUMP BUCKET SERIES www.farsee-tech.com | |||||||
| 1.Description: | |||||||

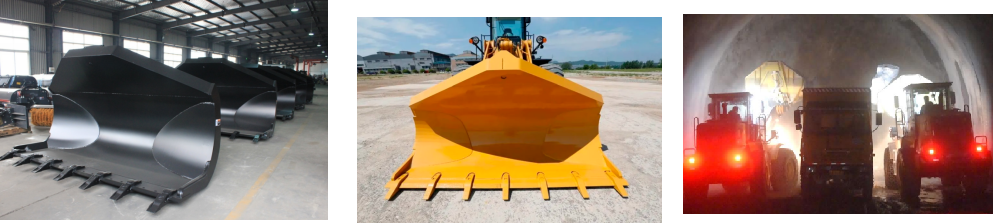

| Farsee Parts Side dump bucket can be assembled on wheel loader. It's mainly used in tunnel excavation works. Due to the narrow tunnel, there is limited space for the loader to operate. Side dump material onto parallel trucks is easy with our side dump buckets. In addition, Our side dump bucket can also be used in harbor, railway ,freight yards (such as goods placed in the construction channel). Farsee supply both sigle cylinder and dual cylinder side dumping buckets. | |||||||
| 2.Specifications: | |||||||
| Item | Side dump bucket-Dual Cylinder | ||||||
| FL0720C | FL0730C | FL0740C | FL0750C | FL0760C | |||
| Rated Loading Weight (KG) | 2500 | 3500 | 4500 | 5500 | |||
| Bucket Capacity（m3） | 1.5 | 2.1 | 2.5 | 2.8 | |||
| Bucket width (mm) | 2680 | 2740 | 2990 | 2990 | |||
| Front dumping | Dump angle(°) | 45 | 45 | 40 | 40 | ||
| Dump Height(mm) | 2800 | 2800 | 3100 | 3100 | |||
| Dump Distance(mm) | 1100 | 1200 | 1200 | 1350 | |||
| Side dumping | Dump angle(°) | 45 | 45 | 45 | 45 | ||
| Dump Height(mm) | 3600 | 3850 | 4080 | 4150 | |||
| Side dump maximum lift height(mm) | 6060 | 6390 | 6780 | 6850 | |||
| Application | 2T wheel loader | 3T wheel loader 300KV,etc.. | 4T wheel loader 400KV,etc.. | 5T wheel loader 500KV,etc. | 6T wheel loader 500KV,etc. | ||

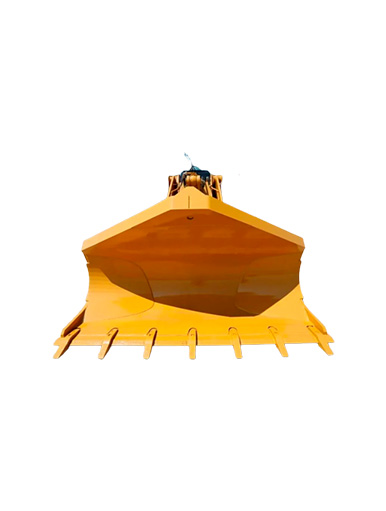

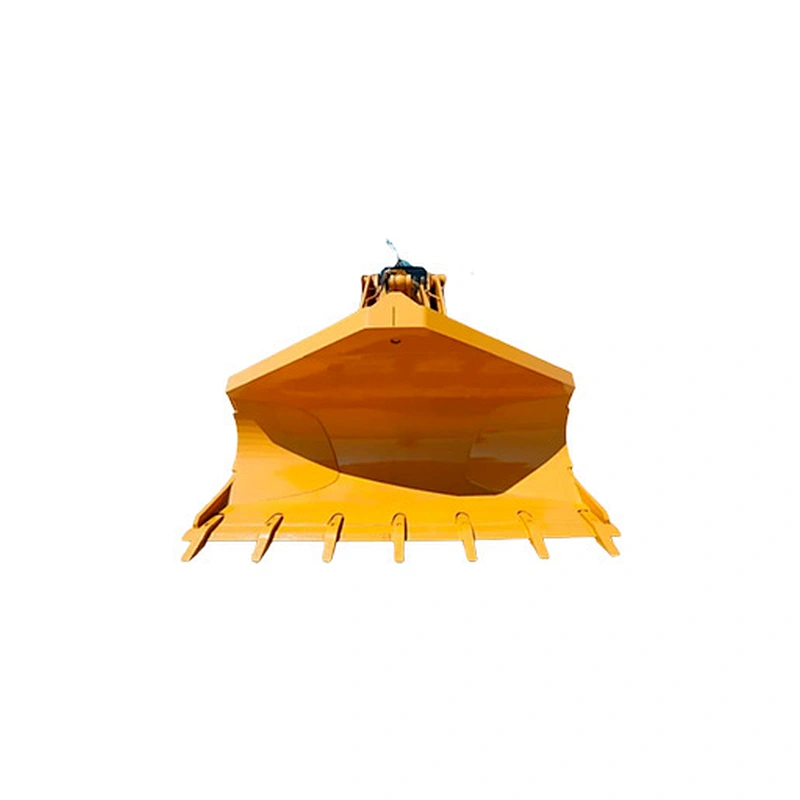

| 2).Side dump bucket -Dual Cylinder | |||||||
 | |||||||
