HYDRAULIC GRAPPLE SERIES www.farsee-tech.com | ||||||||||
| 1.Description: | ||||||||||
| .Rotary stone grabber, wood grabber, light in texture, high elasticity and high wear resistance. .It has braking function and adopts a new type of turbine and worm design .Adopt small-tonnage excavator slewing device and use brake pads to brake, thus greatly improving the rotation service life, stability and efficiency. .Large opening width, less weight and greater performance at the same level .In order to strengthen the power, use a special large capacity cylinder .Can rotate freely 360 degrees clockwise and counterclockwise .Using special rotating gears to extend product life and reduce maintenance costs .It can carry out all clamping operations such as stone work, timber sugar cane work, waste work, pipe work, garden operation, masonry work, etc. | ||||||||||
| 2. Wood/Log Grapple&Stone Grapple | ||||||||||
| Item | Wood Grapple &Stone Grapple | |||||||||
| FEG0206 | FEG0711 | FEG1216 | FEG1723 | FEG2430 | FEG3140 | FEG4150 | ||||
| Max jaw opening /mm | 1060 | 1400 | 1800 | 2300 | 2500 | 2500 | 2700 | |||
| Oil pressure(kg/cm2) | 110~140 | 120~160 | 150~170 | 160~180 | 160~180 | 180~200 | 180~200 | |||
| Operating flux (kg/cm2) | 160 | 180 | 190 | 200 | 210 | 250 | 250 | |||
| working Oil flow/L/min | 20~40 | 50~100 | 90~110 | 100~140 | 130~170 | 200~250 | 250~320 | |||
| Weight | 300 | 390 | 740 | 1380 | 1700 | 1900 | 2100 | |||
| Suitable excavator/T | 1.5-6 | 7-11 | 12-16 | 17-23 | 24-30 | 31-40 | 41-50 | |||
| 3.Pictures: | ||||||||||

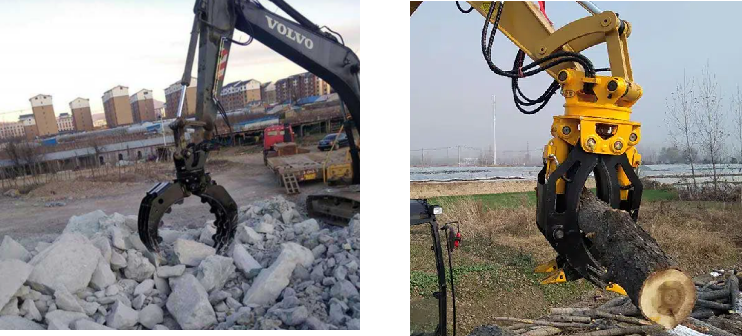

| Stone Grapple | Wood Grapple | |||||||||
