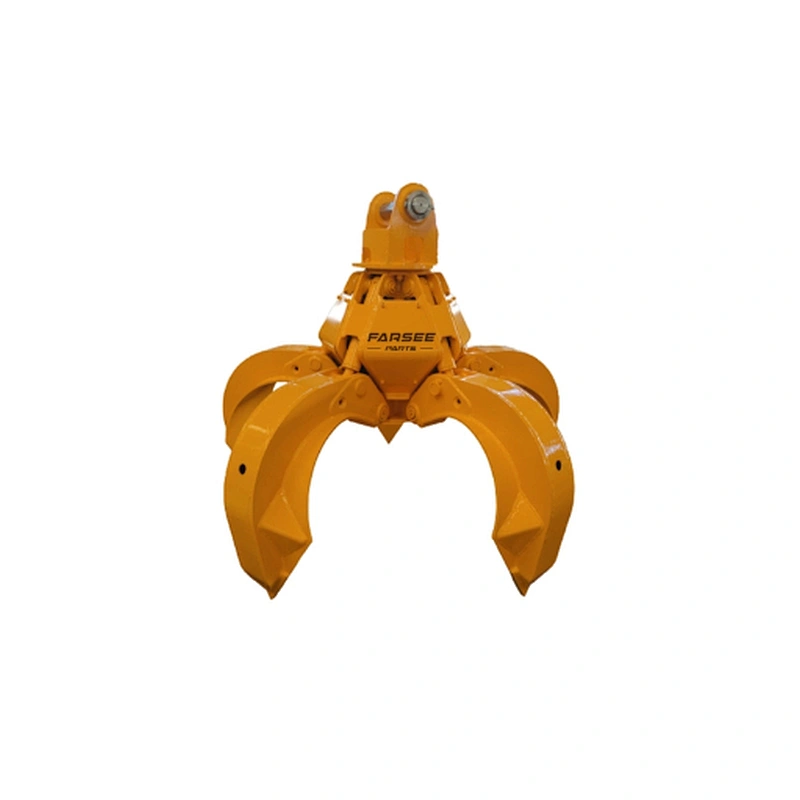

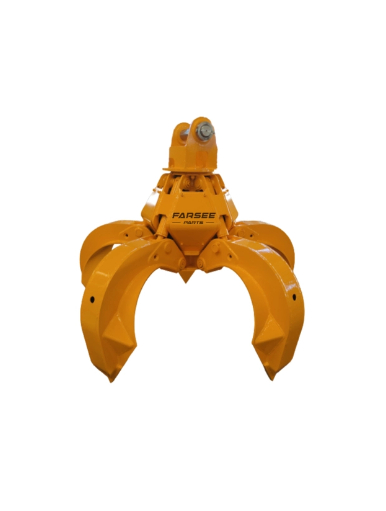

Hydraulic orange peel grapple

Model NO.: FEOH0409 FEOH1016 FEOH1724 FEOG1016 FEOG1724 FEOG2535

Quantity:

Product Description

ORANGEPEEL GRAPPLE SERIES www.farsee-tech.com
	1.Description:
	Feature: 1. Unlimited clockwise and anti-clockwise 360° rotatable swing bearing system or non-rotating type. 2. Equipped with German-made M+S motor, more powerful and stable. 3. Using NM400-500 steel and all pins are heat treated making our grapple with a very long service life. 4. Original German oil seals, balance valve, safety valve making cylinder more durable and safe. 5. Using handles to operate the grapple which is more comfortable and flexible for driver. 6. All spare parts ready for installation ( pins, pipes, solenoid valve, switch, wire harness, manual, kit, bolts and nuts etc.). Farsee parts supply orange peel grapple rotating type or non rotating type, with 4 or 5 claws, full claws or half claws, with one pin or double pins, with bucket teeeth or without bucket teeth.
	2.Specifications:
	Farsee No.	FEOH0409	FEOH1016	FEOH1724	FEOG1016	FEOG1724	FEOG2535
	Maximum opening/mm	1400	1600	1820	1650	1850	2050
	Weight/kg	500	750	1200	800	1250	1530
	Operation pressure(closed) kg/cm²	120-160	140-180	160-200	140-180	160-200	160-200
	Operation flow(closed) L/min	50-100	80-120	100-140	80-120	100-140	130-180
	Operation pressure( rotating) kg/cm²	80-120	80-120	80-120	80-120	80-120	80-120	H 双轴
	Operation flow(rotating)L/min	30-50	30-50	30-50	30-50	30-50	30-50	G 单轴
	Grab weight /kg	800	1000	1300	1100	1500	1700
	Number of peels/pcs	4	5	5	5	5	5
	Suitable carrier	4-9	10-16	17-24	10-16	17-24	25-35

	Farsee No.	F0G04H	F0G06H	F0G08H	F0G06
	open width A /mm	1400	1600	1820	1650
	Close width B/mm	500	750	1200	800
	Height C/mm	120-160	140-180	160-200	140-180
	Height D/mm	50-100	80-120	100-140	80-120
	cylinder thrust	80-120	80-120	80-120	80-120
	Oil Pressure	30-50	30-50	30-50	30-50
	Grab weight /kg	800	1000	1300	1100
	Weight/kg	4	5	5	5
	Suitable carrier	5-9	10-16	17-23	24-30
