 QUICK HITCH SERIESwww.farsee-tech.com | ||||||
| 1.Description: | ||||||
| This attachment is fitted in front of the Excavators, so that the excavators can quickly replace a variety of matching implements to achieve a multi-functional machine. The hydraulic control to lock and unlock, and no additional support personnel are needed. It is convenient, fast and efficient to use. Please install the limit block (digger bucket, dump bucket) according to the host. | ||||||
| 2.Specifications: | ||||||
| Item | Quick Hitch--Hydraulic Type | |||||
| FLQ0120 | FLQ0130 | FLQ0140 | FLQ0150 | FLQ0160 | ||
| Overall Width (mm) | 930 | 1290 | / | 1335 | 1450 | |
| Overall Length (mm) | 360 | 370 | / | 440 | 515 | |
| Overall Height (mm) | 640 | 655 | / | 790 | 795 | |
| Weight (KG) | 220 | 260 | / | 450 | 545 | |
| Suit to machine | 2T | 3T | 4T | 5T | 6T | |

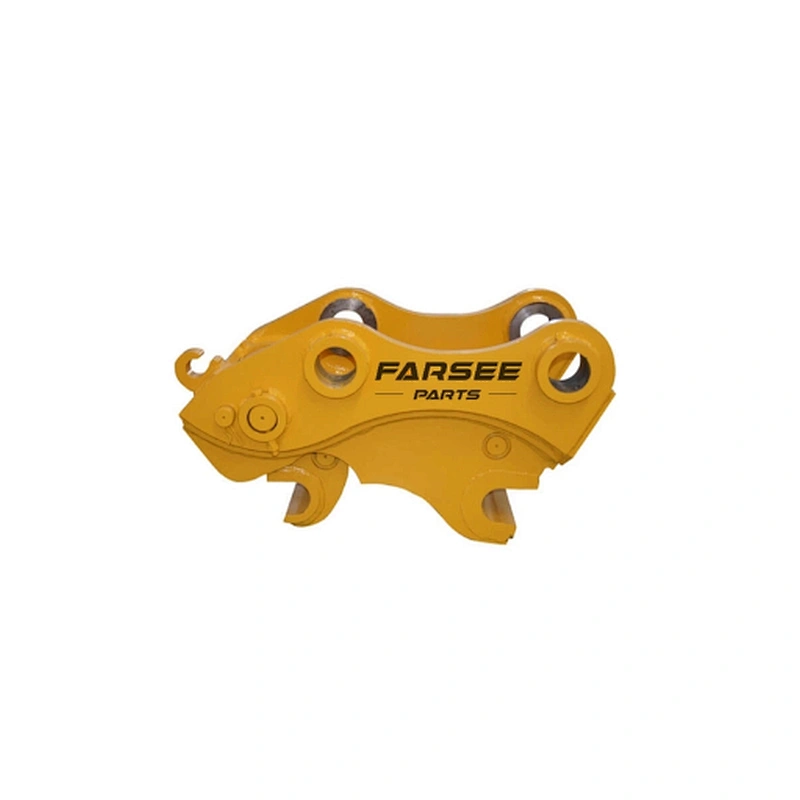

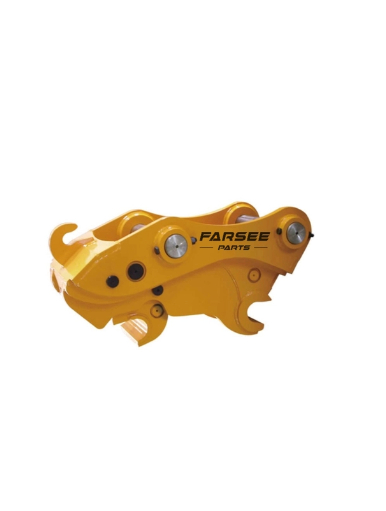

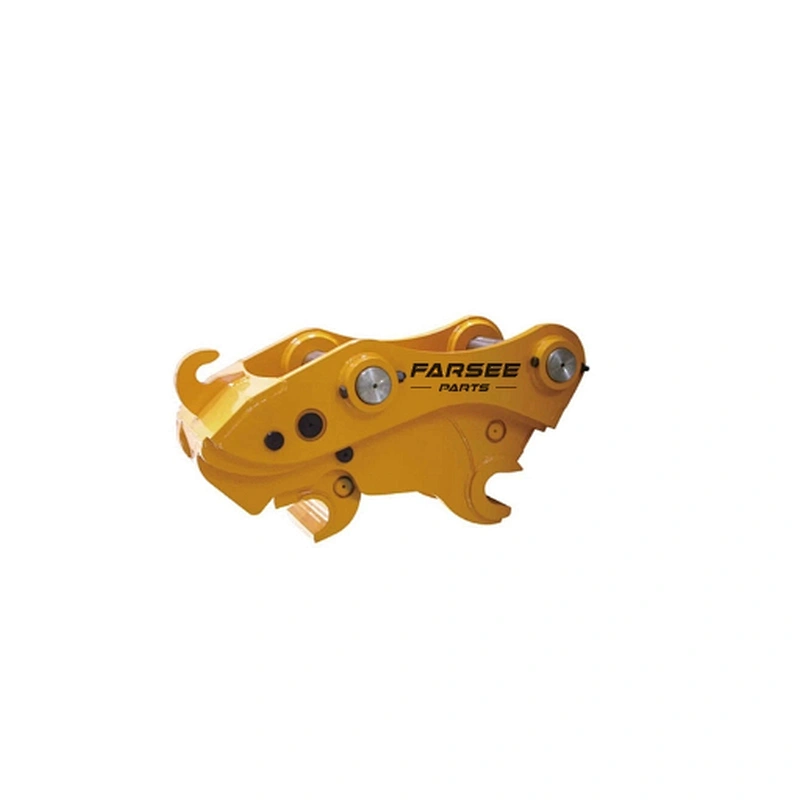

| 3.Pictures（Hydraulic ）: | ||||||
| Note : Farsee also offer mechanical type for cutomer needs. | ||||||
